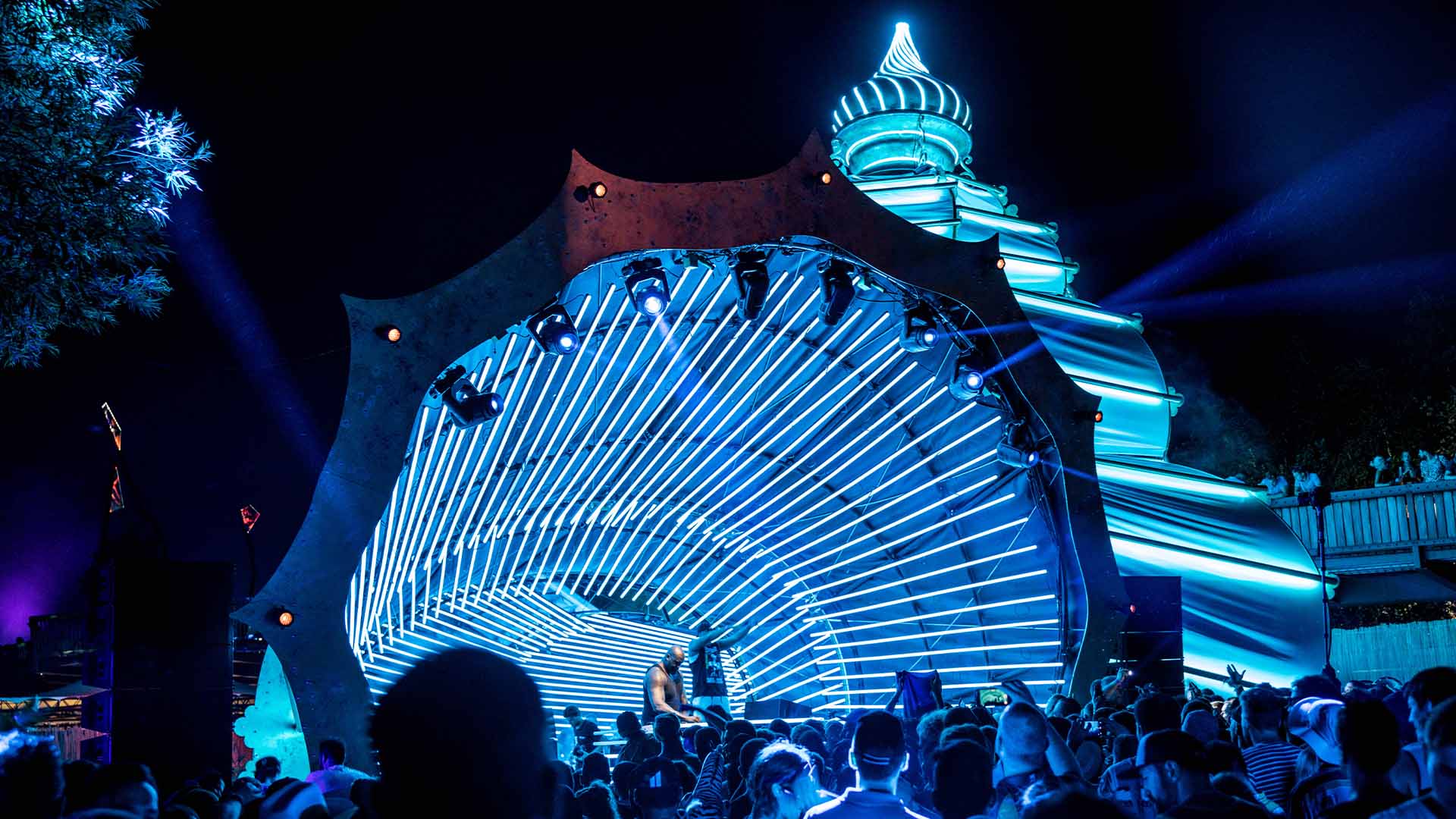

Lucenti Blackwave lighting installation at Tomorrowland

Lucenti collections

Blackwave

Pixel-controlled RGBW bars for bold visual designs, driven by PixlBus technology.

Designed for creative lighting

blackwave collection

Pixel-controlled RGBW bars and PixlDrive controllers for creative lighting, with PixlBus auto-discovery and synchronized control.

PixlBus technology

PixlBus is our proprietary two-way protocol for pixel and creative lighting—built for fast setup, reliable performance, and real-time monitoring, even during live shows.

  • Plug-and-play setup: Auto-discovery and mapping of connected devices with one button click.
  • Power and data in one cable: A proprietary 4-pin cable simplifies system wiring.
  • High-speed communication: High frame rates for smooth, responsive lighting effects.
  • Synchronized control: Pixels stay synchronized across ports and controllers.
  • Scalable capacity: PixlDrive1 supports up to 400 RGBW pixels / 200W; PixlDrive8 Pro supports up to 3200 RGBW pixels / 1600W.

Products & specifications

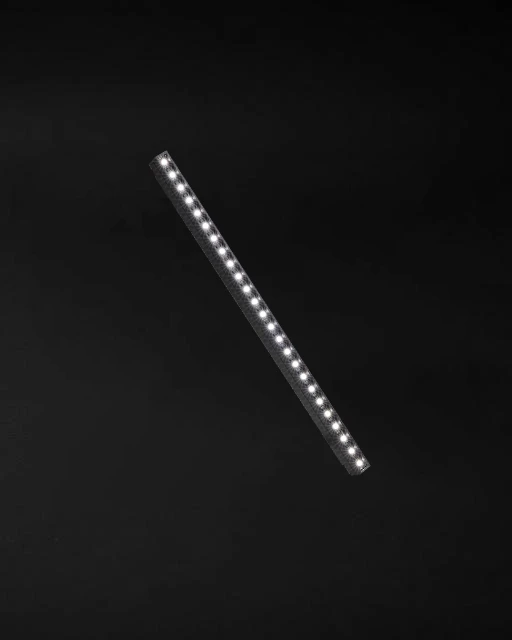

Blackwave Bars (BW)

BW 100 - BW 50

  • RGBW LEDs
  • PixlBus technology
  • Slim design
  • Pixel controlled
  • Auto address & discovery function
  • Daisy chainable
  • Black, frosted and clear filters
  • Round and square covers
  • Up to 60m cable distance
  • Multiple mounting accessories available
  • Control by Lucenti PixlDrive controllers

Specifications

  • Length options 1m / 50cm
  • LED/pixel count 1m: 50 LEDs / 50cm: 25 LEDs
  • Voltage 24V
  • Watts 1m: 13W / 50cm: 6,5W
  • Color RGBW

Grey replacement covers are separate accessories and contain the detachable cover only.

Pearl 2.0 system with Pearl cap

Pearl v2

Pearl 2.0 system with Sphere cap

Sphere

Pearl 2.0 system with Nova cap

Nova

Pearl 2.0 system with Stratos cap

Stratos

Pearl 2.0 system with Petal cap

Petal

PixlDrive1

PixlDrive1

  • PixlBus output
  • Standalone mode
  • Built-in effects
  • Auto discovery and addressing
  • Responsive web interface
  • 2 network port allow daisy chaining
  • 400 RGBW pixels per controller

Controller

  • Output: 1x PixlBus output, max 400 RGBW pixels
  • Protocols: Lucenti PixlBus, Art-Net 1 (broadcast), Art-Net 2, 3 and 4 (unicast) ACN/e1.31 multicast and unicast
  • Power: 115-230V AC 50/60 Hz over powerCON TRUE1
  • Power: supply 200W/24V DC
  • Housing: IP20, 19 inch 1/2u bracket available
PixlDrive8Pro

PixlDrive8 Pro

  • PixlBus outputs
  • KLSTR on board for automated configuration and GDTF-based fixture id patch : see KLSTR.tech
  • PoE for remote maintenance and log
  • 3 x gigabit network
  • KLSTR topology overview, redundancy and monitoring through KLSTR ctrl desktop app
  • Merge up to 4 sources
  • Easy discovery and monitoring of large setups with multiple controllers

Controller

  • Output: 8 x Lucenti PixlBus output ports 8x 400 RGBW pixels
  • Protocols: Lucenti PixlBus, Art-Net 1 (broadcast), Art-Net 2, 3 and 4 (unicast)
  • SACN/e1.31 multicast and unicast KLSTR compatible
  • Power: 115-230V AC 50/60 Hz over powerCON TRUE1
  • Power supply: 1600W/24V DC or 8 x 200W per port
  • Housing: IP20, 19 inch 1u
