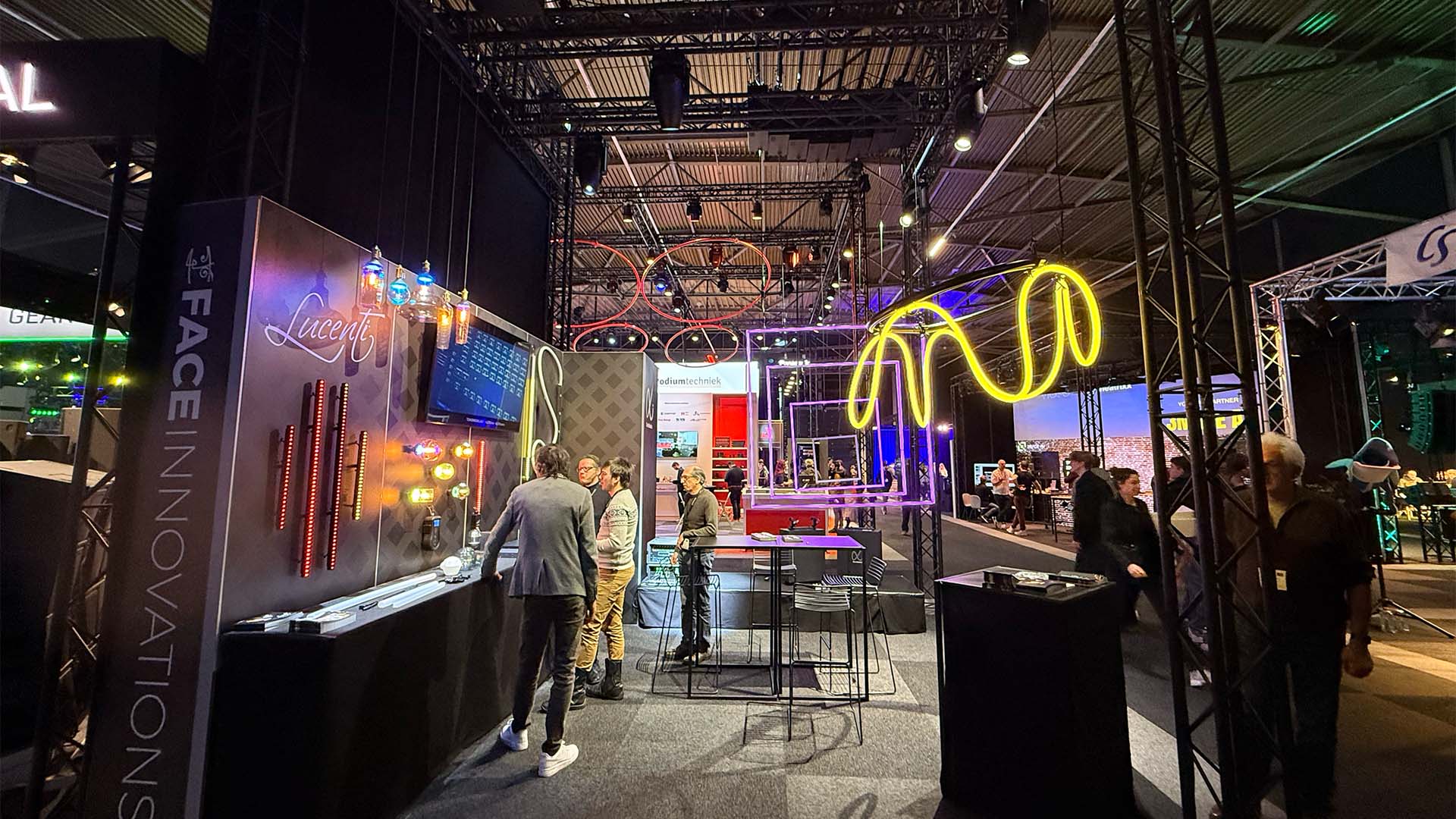

Lucenti lighting installation at Cue 2026 in Rotterdam

Lucenti collections

Flex

Flexible strips, pixel dots and neon lighting for expressive shapes and creative installations.

Designed for creative lighting

flex collection

Flexible RGBW strips and pixel dots controlled through PixlConverter and the Lucenti PixlDrive system.

PixlBus technology

PixlBus is our proprietary two-way protocol for pixel and creative lighting—built for fast setup, reliable performance, and real-time monitoring, even during live shows.

  • Plug-and-play setup: Auto-discovery and mapping of connected devices with one button click.
  • Power and data in one cable: A proprietary 4-pin cable simplifies system wiring.
  • High-speed communication: High frame rates for smooth, responsive lighting effects.
  • Synchronized control: Pixels stay synchronized across ports and controllers.
  • Scalable capacity: PixlDrive1 supports up to 400 RGBW pixels / 200W; PixlDrive8 Pro supports up to 3200 RGBW pixels / 1600W.

Products & specifications

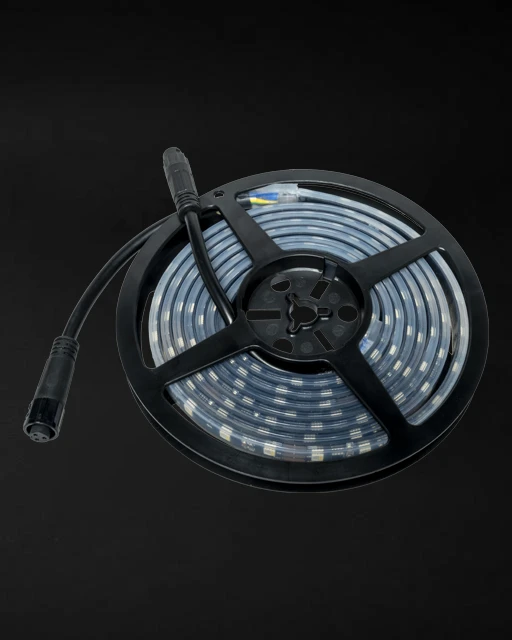

PixlStripOne

  • RGBW outdoor IP66 LEDs, full silicone coating
  • 6 LEDs are grouped to form a pixel
  • Controllable by Lucenti PixlConverter connected to Lucenti PixlDrive
  • Unique auto address and pixel count detection
  • Up to 20m combined on a single PixlDrive1 or PixlDrive8 Pro output
  • (200W) with 1 PixlConverter
  • Cover accessories : black or frosted
  • Aluminium profile available for mounting

Specifications

  • Length options 120cm / 240cm / 480cm / 960cm
  • LED count 120cm = 60 LEDs
  • Pixel count 120cm = 10 pixels (6 LEDs are 1 pixel)
  • Watts 1,2m: 12,50W - 1m: 10,4W
  • Color RGBW, white = 6000K
  • Bending radius vertical 30mm max. horizontal not bendable

Dots

  • Outdoor RGBW pixel dot, to use together with Lucenti PixlConverter and PixlDrives
  • PixlBus technology
  • 110 RGBW pixels on one output port of a PixlConverter
  • Multiple PixlConverters can be daisy chained
  • Auto address and pixel count function
  • Mounting : black aluminium profile or individual
  • Mounting bracket

Specifications

  • Length options 120cm / 240cm / 480cm / 960cm
  • LED count 120cm 60 LEDs
  • Pixel count 2 meter, 10 Dots with 20cm pitch or 5 meter, 25 Dots with 20cm pitch (1 dot = 1 pixel)
  • Voltage 24V
  • Housing: iwatts 1,8 W / dot, 2 meter version = 18W, 5 meter version = 45wp
  • Color RGBW, white = 6000K
  • Size dot diameter: ±40mm, thickness: 14mm

PixlConverter

  • PixlBus technology
  • Controls Lucenti flex products
  • Auto setup: detection of number of connected pixels
  • Output current measurement
  • Output current protection
  • Up to 16 PixlConverters (max 200W and 30m of extension cable in total) can be daisy chained
  • Use together with PixlDrive controllers

Specifications

  • Ip rating IP66
  • Voltage 24V
  • Max power 200W
  • Signal PixlBus in/out

Downloads & resources

Find manuals, firmware and technical documents for planning and maintaining your installation.
